How to measure finger and hand range of motion
Clinical guide · Updated July 2026
To measure finger range of motion with a goniometer, support the hand with the finger straight, place a small goniometer on the back (dorsal surface) of the joint, align it along the two bones, then bend the joint and read the angle. Normal finger flexion is about 90° at the MCP, 100° at the PIP, and 90° at the DIP; the thumb reaches about 50° (MCP) and 80° (IP) (AAOS). Total Active Motion (TAM) sums a digit’s flexion. The steps and evidence are below.
Normal hand range of motion
| Movement | Normal ROM |
|---|---|
| Finger MCP flexion (index–little) | 90° |
| Finger PIP flexion | 100° |
| Finger DIP flexion | 90° |
| Thumb MCP flexion | 50° |
| Thumb IP flexion | 80° |
Full extension returns each joint to a 0° neutral. See the full normal range of motion chart for every joint. The Goniometer app guides every finger and thumb joint in flexion and extension with animated placement.
What you need
- A small finger goniometer, or a smartphone goniometer app laid along the bone.
- A supported position for the forearm and hand, with the wrist in neutral.
- Reference to the dorsal (back) surface of the finger, over the joint and the two phalanges it connects.

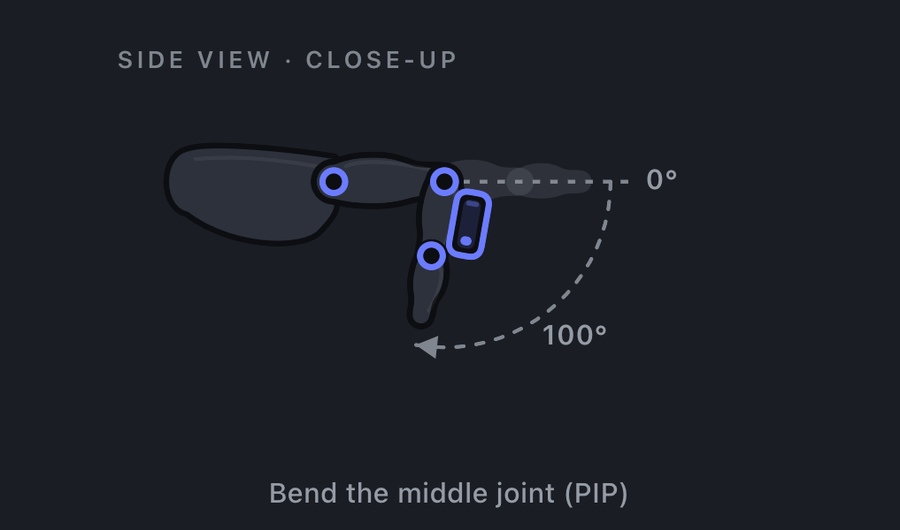

How to measure finger PIP flexion, step by step
- Position the patient. Forearm and hand supported, wrist in neutral, the finger straight — this is the 0° starting position.
- Use a finger goniometer. Place a small goniometer on the dorsal (back) surface of the finger rather than the side, which is the standard technique for the small finger joints.
- Center the fulcrum. Position the goniometer axis over the dorsal aspect of the PIP joint (the middle knuckle of the finger).
- Align the arms. Line the proximal arm over the dorsal midline of the proximal phalanx and the distal arm over the dorsal midline of the middle phalanx.
- Move to end range. Bend the PIP joint, curling the fingertip toward the palm, until it stops.
- Read and record. Read the angle at end range and note the digit, joint, and side (L/R).
MCP, DIP, thumb, and Total Active Motion (TAM)
The MCP and DIP joints are measured the same way over their dorsal surface, and the thumb at its MCP and IP joints. Total Active Motion (TAM) is a standard hand-therapy summary that adds a finger’s MCP, PIP, and DIP flexion and subtracts any extension lag; a normal finger TAM is roughly 260–280°. The Goniometer app computes TAM automatically from the individual joint measurements.
Getting a reliable measurement
Finger goniometry is reliable, especially when the same examiner uses a consistent technique. A 2022 comparative study found smartphone-based finger goniometry as reliable as a universal goniometer, with every joint agreeing within 5° (largest difference 4.6°). Four habits keep readings repeatable:
- Support the hand the same way each time with the wrist in neutral, so wrist position doesn’t change tendon tension on the fingers.
- Measure over the dorsal surface of the joint, the standard technique for the small finger joints.
- Read at a stable end range, not mid-motion, and to the whole degree.
- Use one examiner for progress tracking. Compare a patient’s finger to their own earlier measurement, taken the same way.
Measuring hand ROM with an iPhone
In the Goniometer app, fingers use a two-placement method suited to small bones: set zero with the phone laid along the back of the bone before the joint, then lay it the same way along the bone after the joint and flex — the total rotation is the joint angle. The app then computes Total Active Motion per digit automatically. Peer-reviewed research supports smartphone finger goniometry as reliable as the universal goniometer — see the accuracy evidence.
Measure the hand on your iPhone. Goniometer guides every finger and thumb joint in flexion and extension, computes Total Active Motion automatically, and shows the AAOS normal range beside every reading — free to measure. Download Goniometer on the App Store.
Frequently asked questions
What is normal finger range of motion?
About 90° flexion at the MCP, 100° at the PIP, and 90° at the DIP for the fingers; the thumb reaches about 50° (MCP) and 80° (IP), per AAOS.
What is Total Active Motion (TAM)?
TAM is a hand-therapy summary of a finger’s motion: it adds the MCP, PIP, and DIP flexion and subtracts any extension lag. A normal finger TAM is roughly 260–280°.
How do you measure finger range of motion with a goniometer?
Support the hand with the finger straight, place a small goniometer on the dorsal (back) surface over the joint, align the arms along the two phalanges, bend the joint, and read the angle.
How reliable is finger goniometry?
Reliable, especially with one examiner. A 2022 study found smartphone finger goniometry as reliable as a universal goniometer, with all joints agreeing within 5°.
Can you measure finger range of motion with a phone?
Yes — a smartphone goniometer app measures each finger joint and can compute Total Active Motion automatically, with reliability comparable to a universal goniometer in peer-reviewed research.
References
- Norkin CC, White DJ. Measurement of Joint Motion: A Guide to Goniometry. 5th ed. Philadelphia: F.A. Davis; 2016.
- American Academy of Orthopaedic Surgeons. Joint Motion: Method of Measuring and Recording. Chicago: AAOS. Normative range-of-motion reference values, as used throughout the Goniometer app.
- Theile H, Walsh S, Scougall P, Ryan D, Chopra S. Smartphone goniometer for reliable and convenient measurement of finger range of motion: a comparative study. Australasian Journal of Plastic Surgery. 2022;5(2):37–43. doi:10.34239/ajops.v5n2.335
- Keogh JWL, Cox A, Anderson S, et al. Reliability and validity of clinically accessible smartphone applications to measure joint range of motion: A systematic review. PLOS ONE. 2019;14(5):e0215806. doi:10.1371/journal.pone.0215806
